3005-04-01
This valve serves as a generic CRES 316 solution for ground and flight systems requiring corrosion resistance.

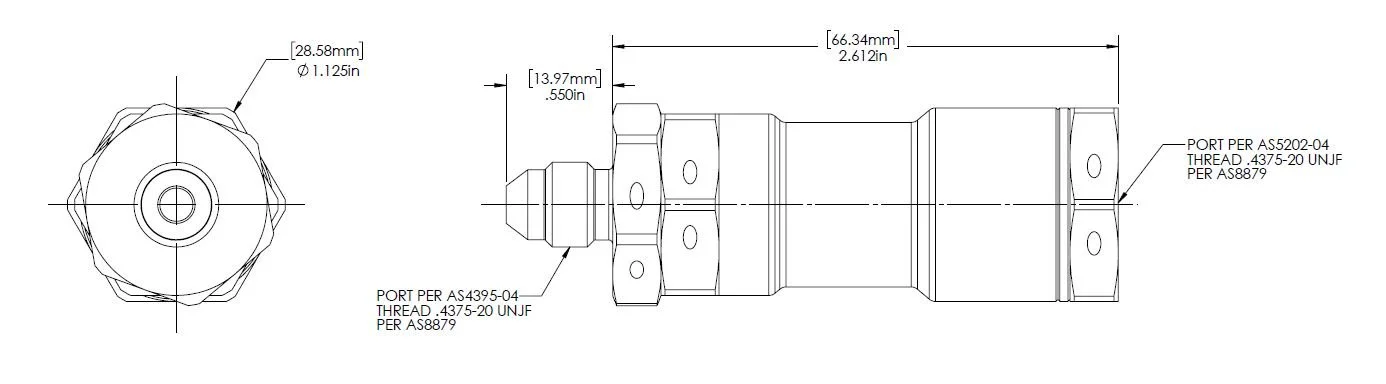

Physical Attributes
Line Size: -04
Line Diameter: 1/4" inch
Inlet Port: AS4395-04
Outlet Port: AS5202-04
Assembly Mass: 0.436 lbm
Valve Materials
Body: CRES 316
Spring: CRES 316
Main Seat: Vespel SP-21
Body Seal: PTFE / CRES 304
Media
Temperature: -420°F to 250°F
Media: H2, LO2, CH4, Inert Gas
Flow
ESEOD: 0.230 inch (Cd = 0.6)
Cv: 0.950
CdA: 0.025 inch²
Pressure
Crack Pressure: 5-10 psi
Maximum Allowable Working Pressure: 3,000 psi
Proof Pressure: 4,800 psi
Burst Pressure: 8,900 psi
Test Data
This valve is new to our line and test data will be made available soon. For similar performance, see 3002-04-01.
