3002-06-01
For flight or ground systems running Nitrogen Tetroxide and Hydrazine, these valves can be tuned for extra low leakage at low psid.

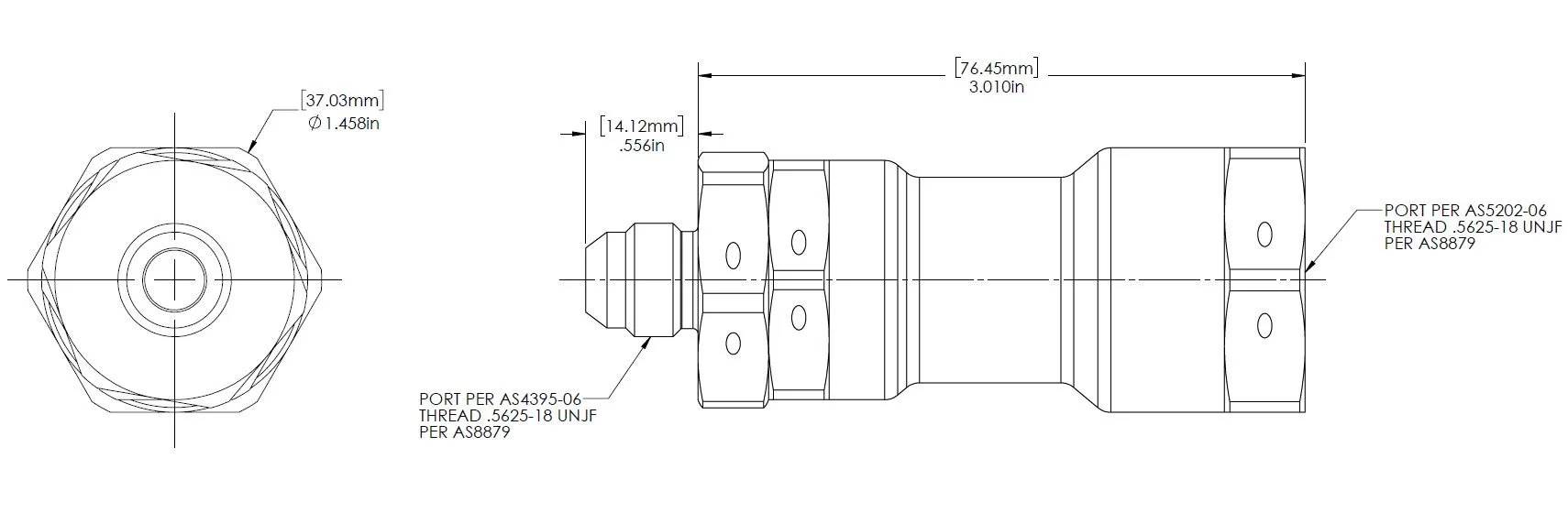

Physical Attributes
Line Size: -06
Line Diameter: 3/8" inch
Inlet Port: AS4395-06
Outlet Port: AS5202-06
Assembly Mass: 0.380 lbm
Valve Materials
Body: Titanium 6Al-4V
Spring: Titanium 6Al-4V
Main Seat: PTFE
Body Seal: PTFE
Media
Temperature: -40°F to 122°F
Media: MMH, MON-3, Inert Gas
Pressure
Crack Pressure: 8-12 psi
Maximum Allowable Working Pressure: 2,500 psi
Proof Pressure: 3,250 psi
Burst Pressure: 3,900 psi
Flow
ESEOD: 0.45 inch (Cd = 0.6)
Cv: 3.6
CdA: 0.095 inch²
Test Data

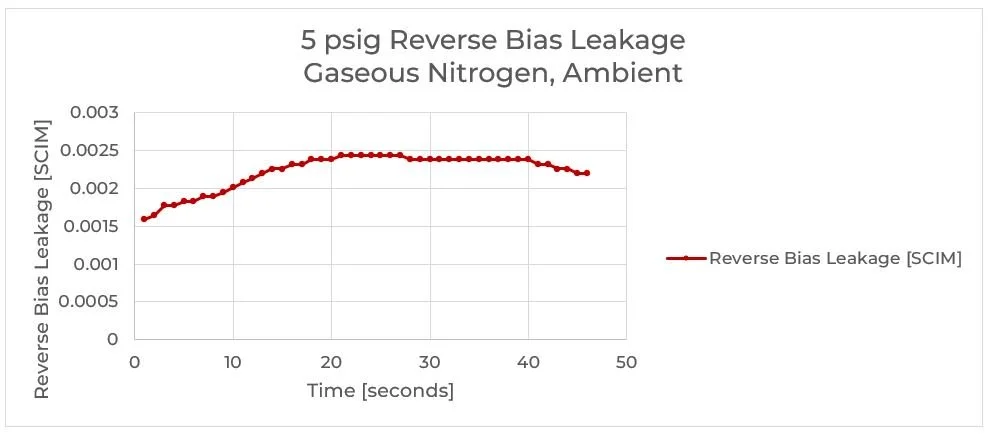

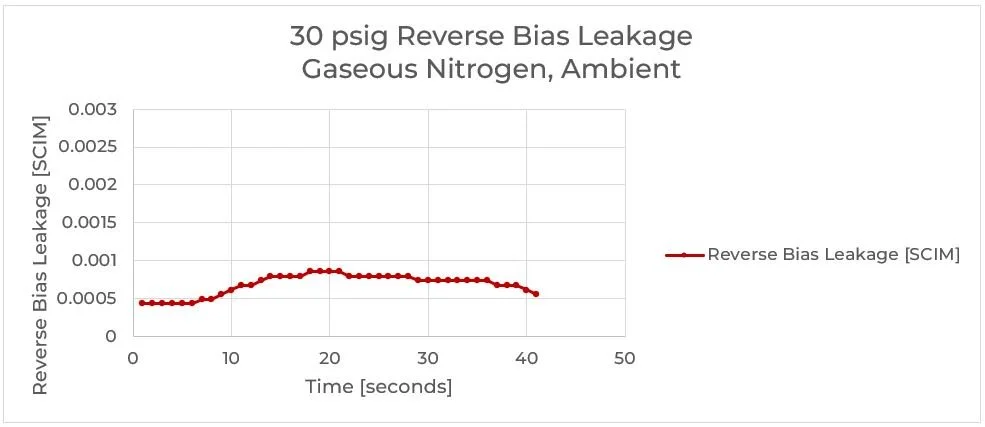

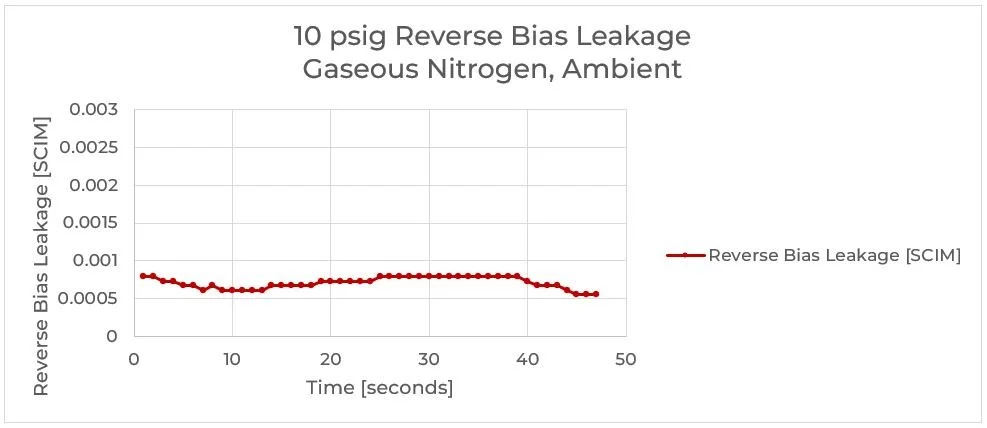

Reverse Bias Leakage
Time series reverse bias leakage testing was performed on the 3002-06-01 valve to quantify reverse bias leakage at low reverse bias psid. The leakage was plotted over time due to the tight leakage requirements of the valve.
Test Sensor: 10 SCCM (0.60 SCIM) full scale output Alicat flow meter
Test Media: Ultra High Purity grade GN2

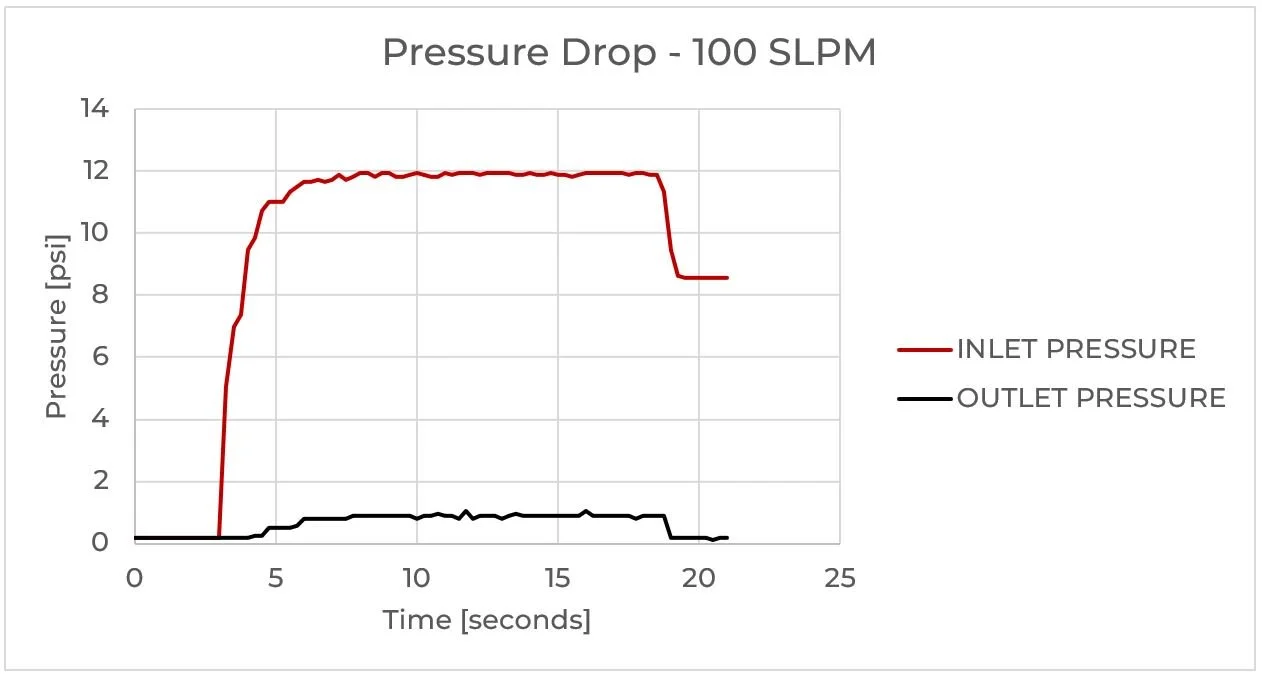

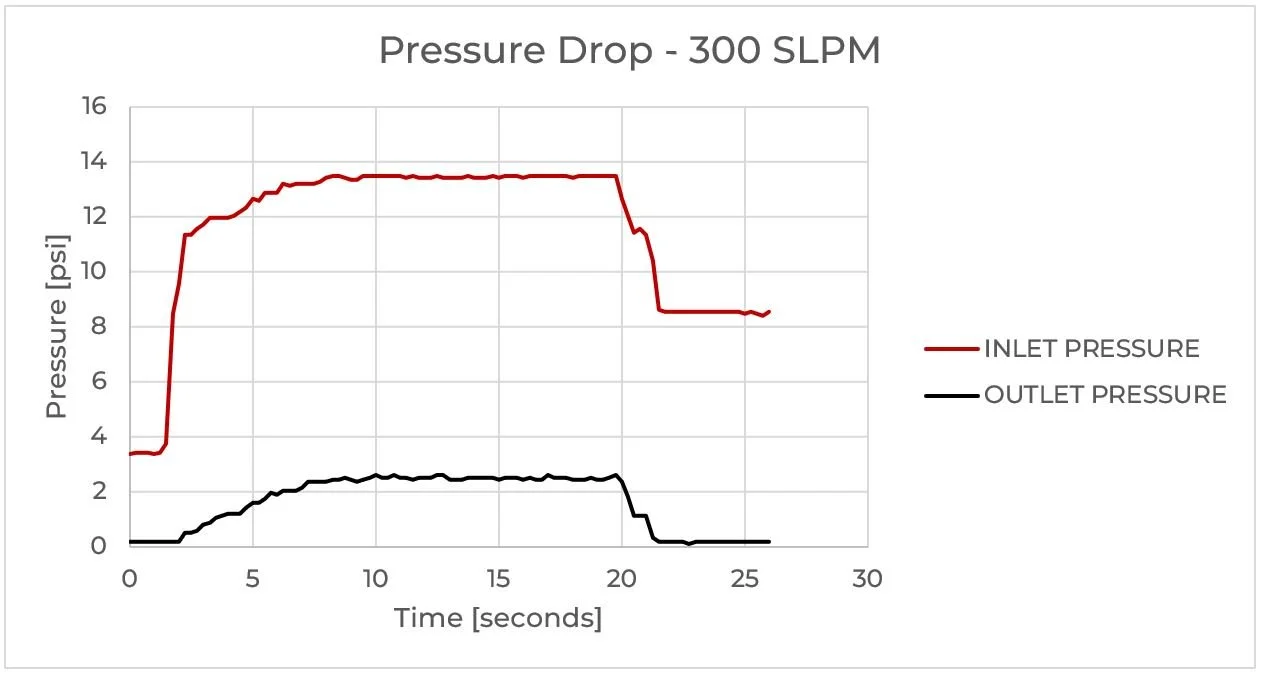

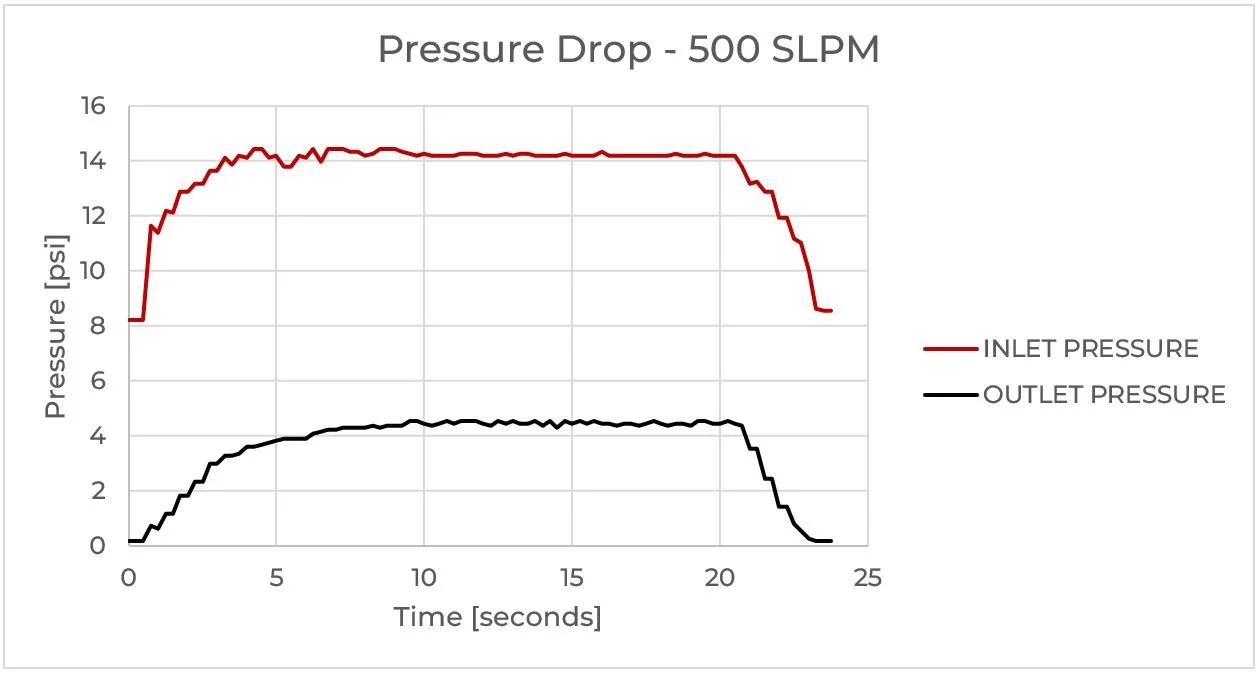

Pressure Drop
Pressure drop testing was performed on the 3002-06-01 valve to quantify pressure loss across the valve for various low flow rates. Since check valves must overcome crack pressure to begin flowing, a check valves full ESEOD is not reached until higher flows are achieved.
Test Sensor: 500 SLPM full scale output Alicat flow meter
Flow Media: Ultra High Purity grade GN2
