3002-04-01
This valve serves as a single solution for ground and flight systems running both gaseous oxygen and hydrogen.

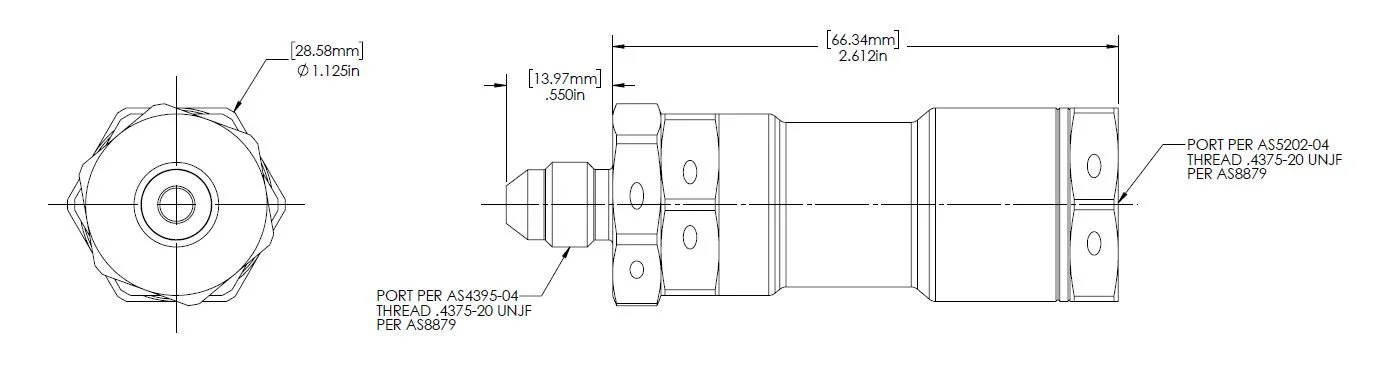

Physical Attributes
Line Size: -04
Line Diameter: 1/4" inch
Inlet Port: AS4395-04
Outlet Port: AS5202-04
Assembly Mass: 0.490 lbm
Valve Materials
Body: Toughmet
Spring: C51000
Main Seat: Vespel SP-21
Body Seal: PTFE / CRES 304
Media
Temperature: -420°F to 250°F
Media: O2, H2, CH4, Inert Gas
Pressure
Crack Pressure: 5-10 psi
Maximum Allowable Working Pressure: 6,200 psi
Proof Pressure: 9,618 psi
Burst Pressure: 12,900 psi
Flow
ESEOD: 0.230 inch (Cd = 0.6)
Cv: 0.950
CdA: 0.025 inch²
Test Data
Crack Pressure

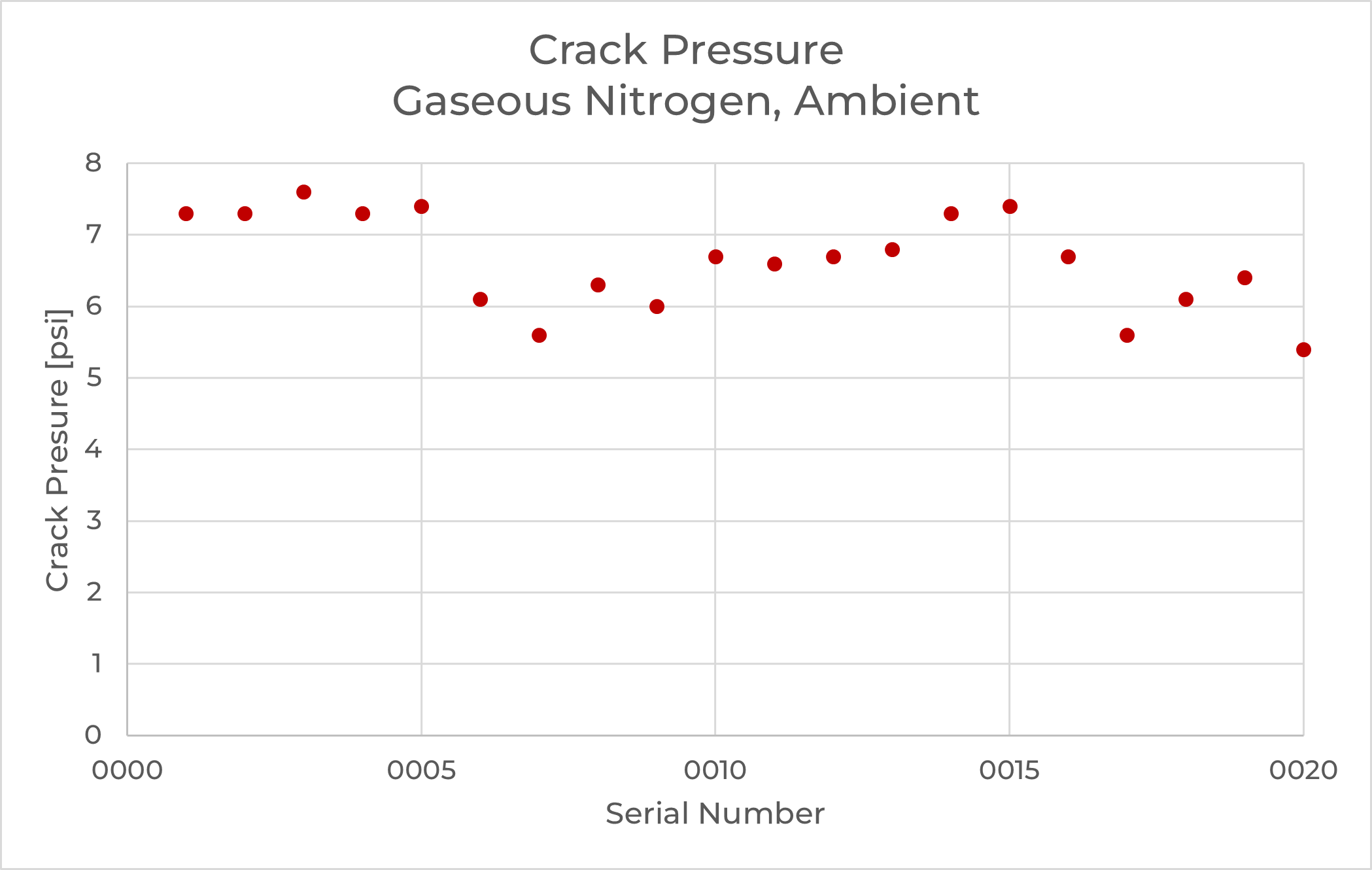

3002-04-01 crack pressure data for 20 serial numbers is presented below.
Test Sensor: 100 psig full scale output digital pressure transducer / Bubbles in deionized water
Test Media: Ultra High Purity Grade GN2
Reverse Bias Leakage
3002-04-01 reverse bias leakage data for 20 serial numbers is presented below. Tests were conducted at 100 psig and 5,500 psig reverse bias pressure.
Test Sensor: 10 SCCM (0.60 SCIM) full scale output Alicat flow meter
Test Media: Ultra High Purity Grade GN2
